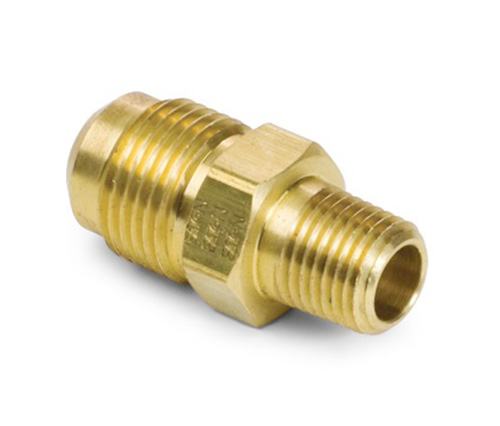

42# SAE 45 ° Flare Adapter Flare Flare Fittings

ส่วนหนึ่ง#

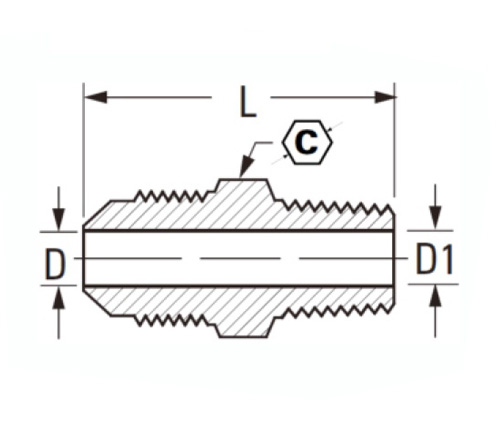

Flare O.d × Thread

C

D

D1

l

48-2A

1/8 × 1/8

7/16

.079

.219

.47

48-3A

3/16 × 1/8

7/16

.126

.219

.58

48-4A

1/4 × 1/8

7/16

.189

.219

.69

48-4B

1/4 × 1/4

9/16

.189

.312

.79

48L-4B

1/4 × 1/4

9/16

.189

.330

.88

48-40

1/4 × 3/8

11/16

.189

.438

1.06

48L-4C

1/4 × 3/8

11/16

.189

.438

1.19

48-4D

1/4 × 1/2

7/8

.189

.562

1.31

48L-4D

1/4 × 1/2

7/8

.189

.562

1.28

48-5A

5/16 × 1/8

1/2

.219

.219

1.38

48-5B

5/16 × 1/4

9/16

.219

.312

1.44

48L-5B

5/16 × 1/4

9/16

.219

.330

1.53

48-5C

5/16 × 3/8

9/16

.219

.438

1.69

48-6A

3/8 × 1/8

5/8

.282

.219

1.88

48-6B

3/8 × 1/4

5/8

.282

.312

1.87

48L-6B

3/8 × 1/4

5/8

.282

.330

1.31

48-6C

3/8 × 3/8

11/16

.282

.438

1.44

48L-6C

3/8 × 3/8

11/16

.282

.438

1.37

48-6D

3/8 × 1/2

7/8

.282

.562

1.69

48L-6D

3/8 × 1/2

7/8

.282

.562

1.44

48-8B

1/2 × 1/4

3/4

.408

.312

1.60

48-8C

1/2 × 3/8

3/4

.408

.438

1.62

48L-8C

1/2 × 3/8

3/4

.408

.438

1.46

48-8D

1/2 × 1/2

7/8

.408

.562

1.73

48L-8D

1/2 × 1/2

7/8

.408

.562

1.62

48-8E

1/2 × 3/4

1-1/16

.408

.750

1.75

48-10b

5/8 × 1/4

7/8

.500

.312

1.79

48-10C

5/8 × 3/8

7/8

.500

.438

1.79

48L-10C

5/8 × 3/8

7/8

.500

.438

1.67

48-10D

5/8 × 1/2

7/8

.500

.562

1.98

48L-10D

5/8 × 1/2

7/8

.500

.562

1.80

48-10E

5/8 × 3/4

1-1/16

.500

.750

1.85

48-12D

3/4 × 1/2

1-1/16

.625

.562

2.17

48-12E

3/4 × 3/4

1-1/16

.625

.750

2.08
